Bulldog Universal Li-Po Charger

BULLDOG UNIVERSAL Li-ion/Li-po SMART CHARGER

Please note – this charger has a 2 pin USA plug, so will require a UK plug adapter.

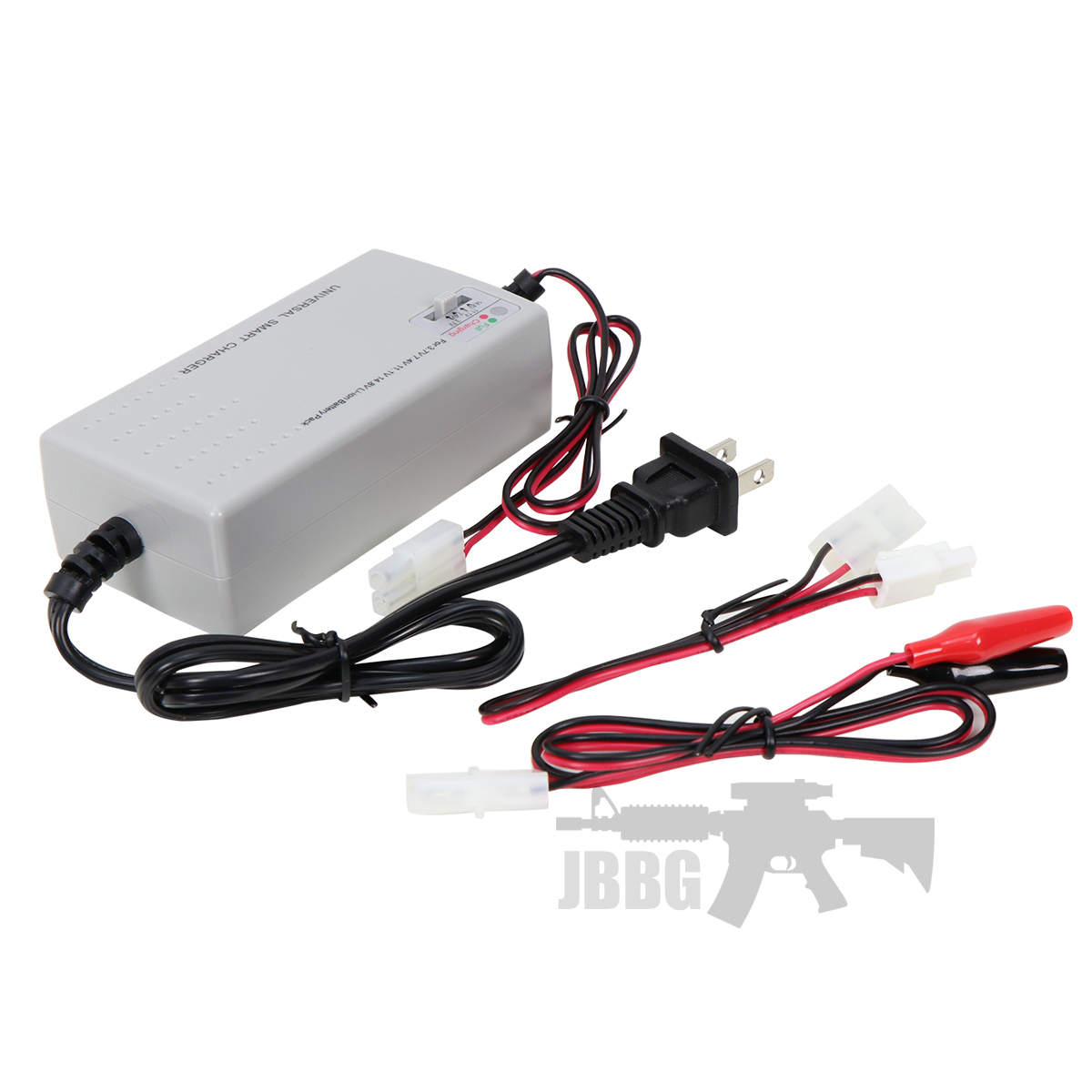

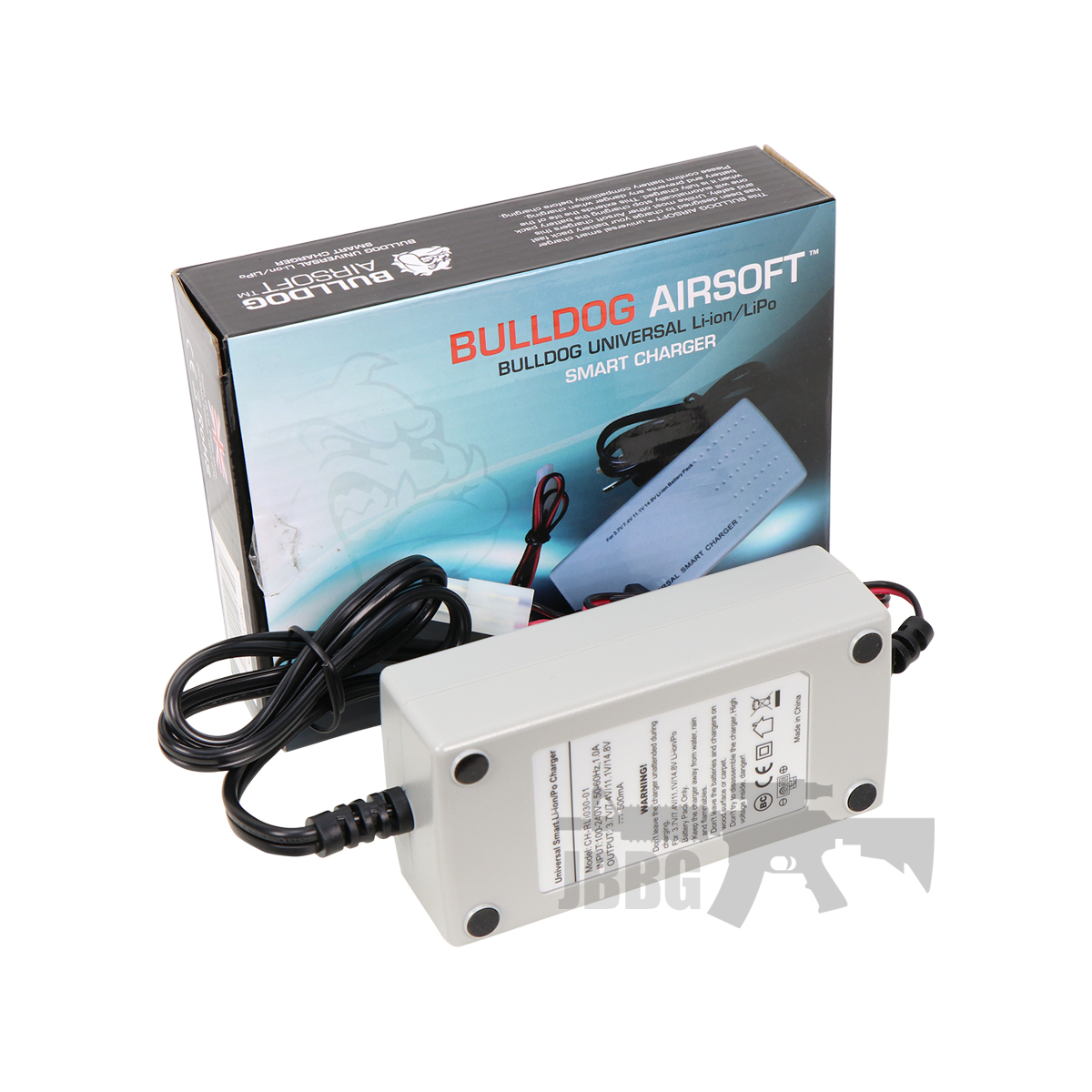

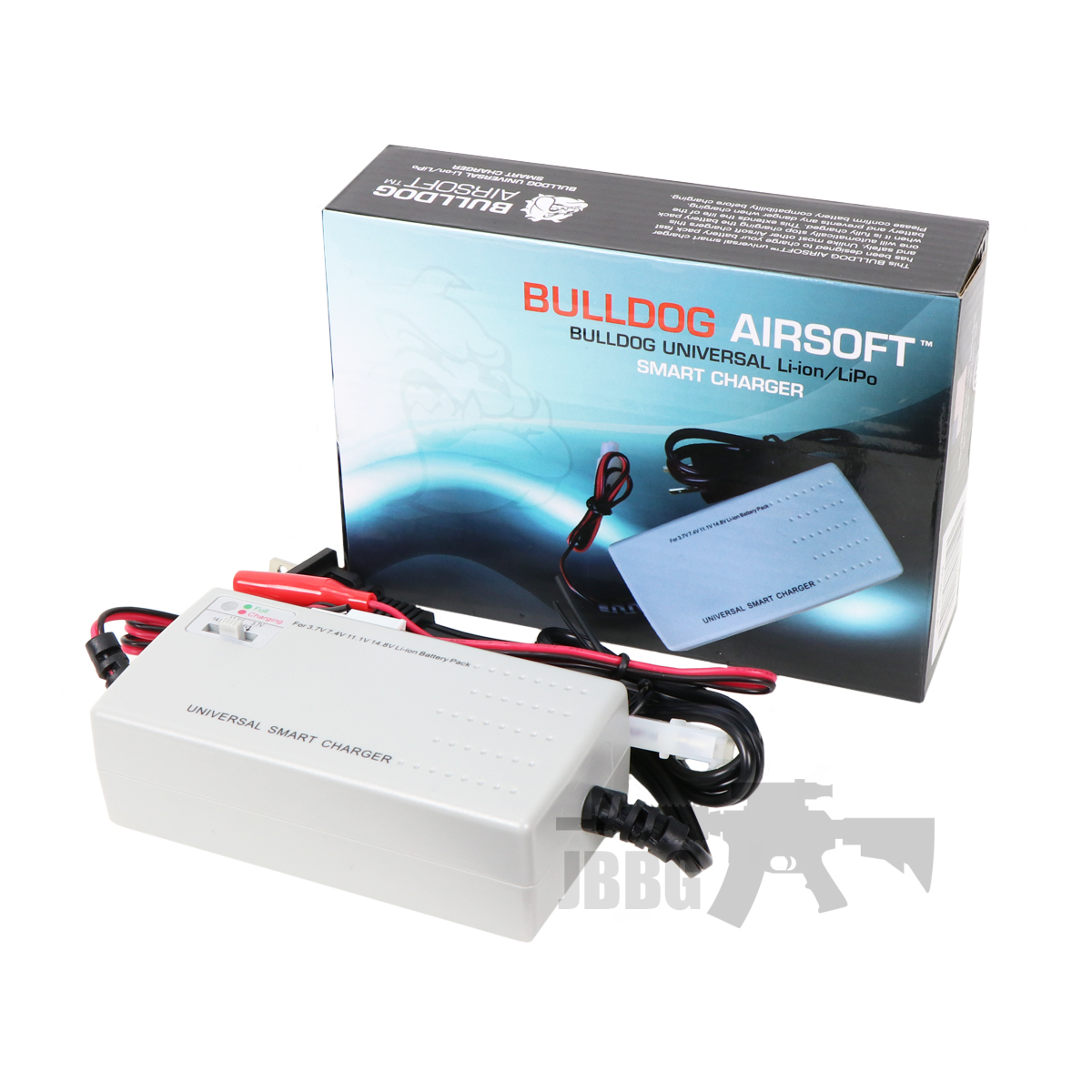

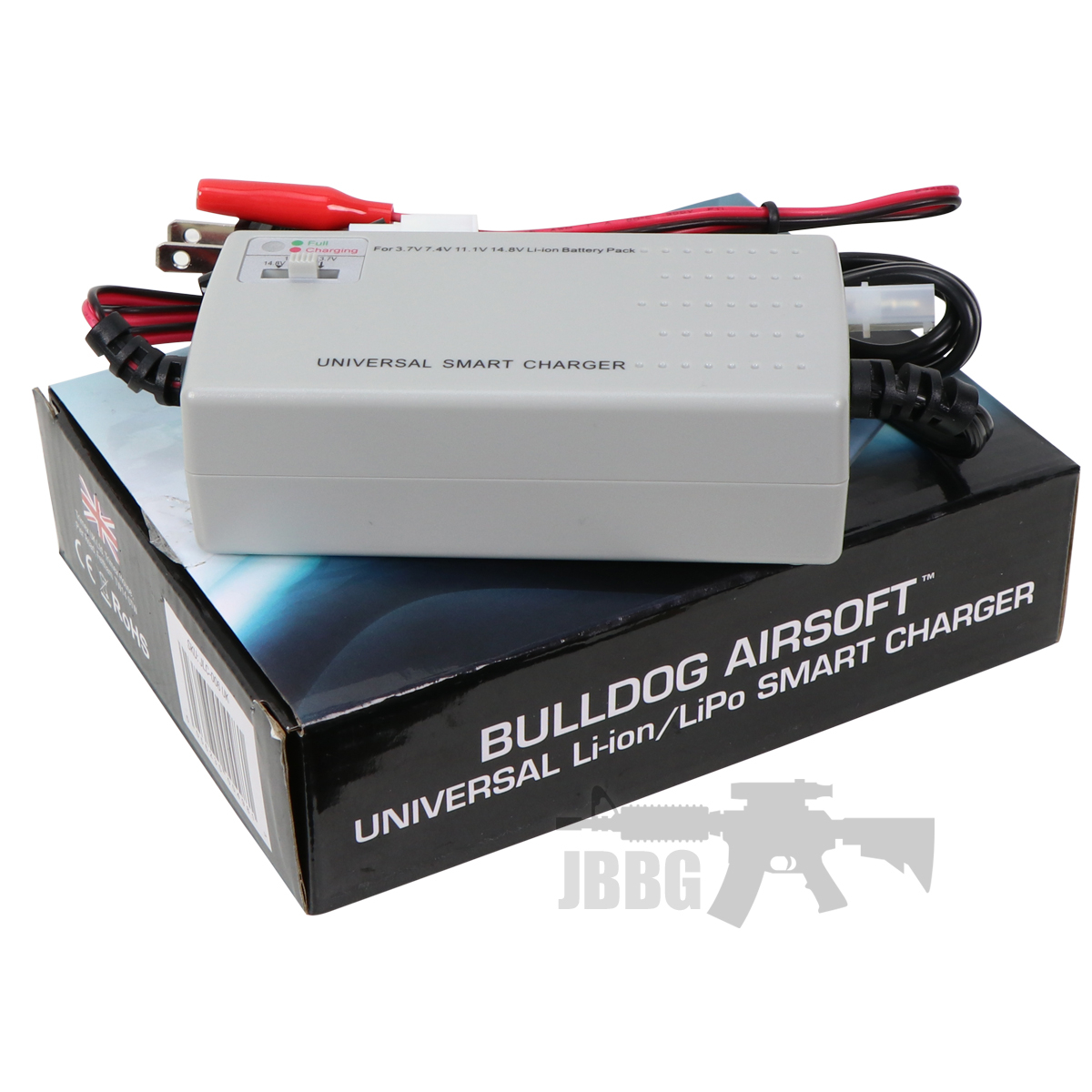

This is the Bulldog Universal Li-Po Charger, an easy compact balance charger for Li-Po airsoft battery.

SPECIFICATIONS

• Input voltage: 100VAC-240VAC 50HZ-60HZ;
• Rating input current: 250 mA
• Full-load power: 12 W
• Battery type and specification: 1~4S Li-Ion/Po battery
• Charging current: 500 mA
• Charging voltage: 2.5~16.8 v
• Weight: Approx. 370 g
• Dimension: 119 * 60 * 37 mm

OPERATING INSTRUCTIONS

This is an easy-to-use charger, just connect the battery to the charger, making sure that the polarity is connected in the right way;

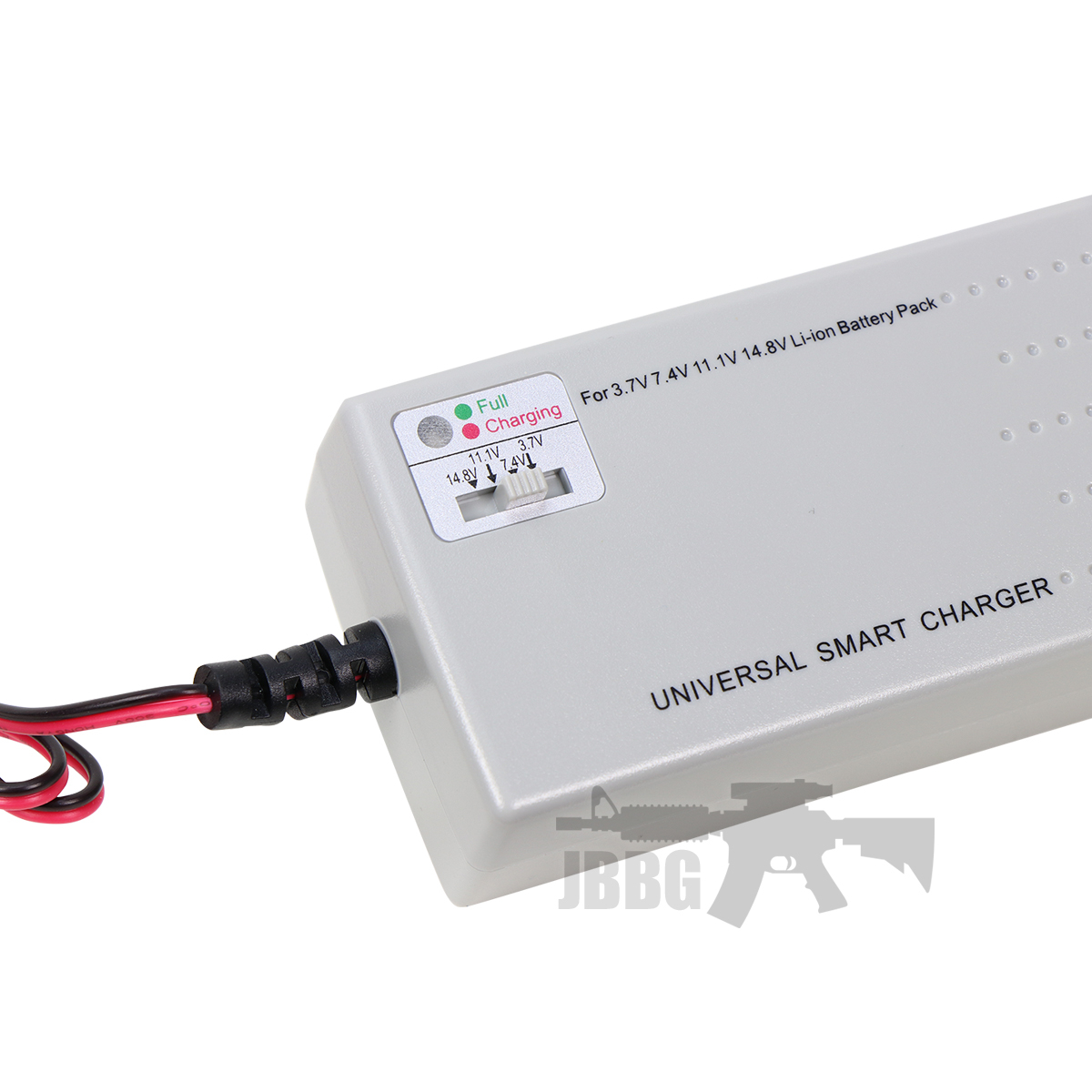

Select the right voltage level for your pack:

• For 3.6/3.7 v 1-cell pack, set switch button 3.7 position on the charger.
• For 7.2/7.4 v 2-cell pack, set switch button 7.4 position on the charger.
• For 10.8/11.1 v 3-cell pack, set switch button 11.1 position on the charger.
• For 14.4/14.8 v 4-cell pack, set switch button 14.8 position on the charger.

Then connect the charger to the AC power supply.

LED INDICATOR

• Green: Empty load or fully charged
• Red: Charging
• Off: Short circuit

WARNING

• Use special caution when working with Lipo battery packs, they are very sensitive to charging characteristics and may explode if mishandled.
• Make sure you have enough knowledge on Lipo rechargeable batteries in charging, discharging and assembly before use.
• Put the batteries in a fire-proof environment when charging.
• We recommend that you only charge when the battery is in a fireproof Lipo bag.
• Never leave batteries unattended when charging.
• Do not put batteries on the car seat, wood surface or carpet when charging.
• We are not responsible for any damage caused by misusing or mishandling, not for any damage caused by other Lipo batteries.
• Do not make any changes to the charger, charger accessories or connectors, as this might cause an electrical shortage, fire or over-heating during charging.

Before purchasing a battery or charger please read our important warning and disclaimer here.
