EXPLOSION DRAWING

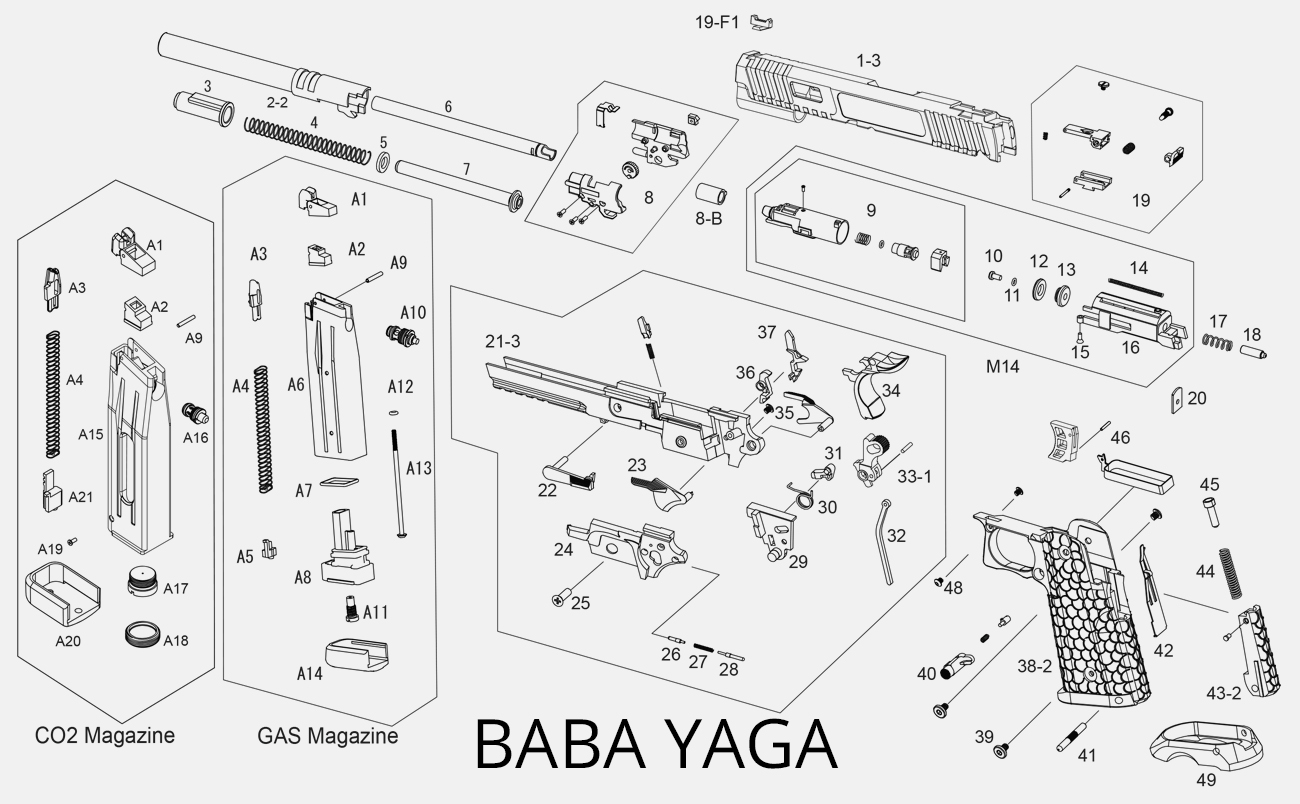

This is the Baba Yaga Schematic Dual Power System 6mm Explosion Drawing. Use this diagram and chart to find the Airsoft Gun part you need. This information is for all Baba Yaga Airsoft Guns found on the Just BB Guns website within the Airsoft Pistols section.
| 1 | SLIDE (ATHLETICS VER.) |
| 1-1 | SLIDE 5.1 |
| 1-2 | SLIDE 4.3 |
| 1-3 | BABA YAGA SLIDE |
| 2 | OUTER BARREL 5.1 |
| 2-1 | OUTER BARREL 4.3 |
| 2-2 | BABA YAGA OUTER BARREL |
| 3 | RECOIL SPRING PLUG |
| 4 | RECOIL SPRING 5.1 |
| 4-1 | RECOIL SPRING 4.3 |
| 5 | RUBBER WASHER |
| 6 | INNER BARREL 5.1 |
| 6-1 | INNER BARREL 4.3 |
| 7 | RECOIL SPRING 5.1 |
| 7-1 | RECOIL SPRING 4.3 |
| 8 | HOP-UP CHAMBER |
| 8-B | HOP BUCKING |
| 9 | AIR NOZZLE |
| 10 | SCREW |
| 11 | O RING |
| 12 | PISTON |
| 13 | PISTON O RING |
| 14 | NOZZLE SPRING |
| 15 | SCREW |
| 16 | AIR NOZZLE BASE |
| 17 | FIRING PIN SPRING |
| 18 | DUMMY FIRING PIN |
| 19 | REAR SIGHT |
| 19-1 | REAR SIGHT FIXED |
| 19-F1 | FRONT SIGHT |
| M14 | AIR NOZZLE SET |
| 20 | PLATE |
| 20 | LOWER RECEIVER 5.1 |
| 21-1 | LOWER RECEIVER 4.3 |
| 21-2 | LOWER RECEIVER ATHLETICS |
| 21-3 | LOWER RECIEVER BABA YAGA |
| 22 | SLIDE STOP |
| 23 | SAFETY |
| 24 | HAMMER BASE |
| 25 | SCREW |
| 26 | PIN |
| 27 | SPRING |
| 28 | PIN |
| 29 | HAMMER BASE COVER |
| 30 | SEAR SPRING |
| 31 | IMPACT PIN |
| 32 | HAMMER GUIDE |
| 33 | HAMMER 5.1 |
| 33-1 | HAMMER 4.3 |
| 34 | GRIP SAFETY 5.1 |
| 34-1 | GRIP SAFETY 4.3 |
| 35 | SCREW |
| 36 | SHEAR SPRING |
| 37 | SHEAR |
| 38 | GRIP ATHLETICS |
| 38-1 | GRIP 5.1 / 4.3 |
| 38-2 | BABA YAGA GRIP |
| 39 | SCREW |
| 40 | MAGAZINE CATCH |
| 41 | MAIN SPRING HOUSING PIN |
| 42 | SEAR SPRING |
| 43 | MAIN SPRING HOUSING 5.1 |
| 43-1 | MAIN SPRING HOUSING 4.3 |
| 43-2 | BABA YAGA MAIN SPRING HOUSING |
| 44 | MAIN SPRING |
| 45 | MAIN SPRING SCREW |
| 46 | TRIGGER |
| 47 | FLASH HIDER |
| 48 | SCREW |
| 49 | MAGWELL |
| A1 | MAGAZINE LIP |
| A2 | AIR NOZZLE RUBBER |
| A3 | MAGAZINE BAR |
| A4 | MAGAZINE SPRING |
| A5 | MAGAZINE BAR STOPPER |
| A6 | MAGAZINE FRAME |
| A7 | O RING |
| A8 | MAGAZINE BASE |
| A9 | PIN |
| A10 | VALVE |
| A11 | GAS VALVE |
| A12 | O RING |
| A13 | SCREW |
| A14 | MAGAZINE BOTTOM |
| A15 | CO2 MAGAZINE FRAME |
| A16 | CO2 MAGAZINE VALVE |
| A17 | CO2 CARTRIDGE STAB |
| A18 | CO2 CARTRIDGE BASE COVER |
| A19 | SCREW |
| A20 | CO2 MAGAZINE BOTTOM |
| A21 | MAGAZINE BASE CATCH |

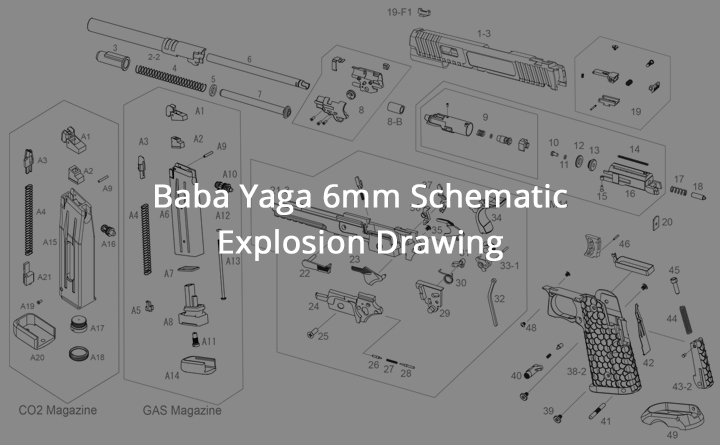

BABA YAGA SCHEMATIC DUAL POWER SYSTEM 6MM
This is the Baba Yaga Schematic Dual Power System – Explosion Drawing for the Baba Yaga Schematic Dual Power System.
The Baba Yaga Schematic, often called an “explosion drawing,” is a detailed visual representation that dissects the airsoft pistol into its fundamental parts, showcasing how each component fits the overall design.
It is presented in an exploded format, where individual parts, such as the slide, barrel, trigger assembly, magazine, and internal springs, are separated but aligned to illustrate their precise arrangement within the airsoft gun.
Each part is labelled with a reference number and name, providing a clear view of the internal mechanism, including the firing pin, hammer, safety, and magazine release components. This layout helps users understand the assembly and disassembly process, making it ideal for troubleshooting, maintenance, and customization.
If you need to replace or upgrade parts of your airsoft gun, find the part in the diagram. Then, click on the part name in the list of parts below to ensure the part number is correct.
