Imax B3 Lipo Charger

Imax B3 Lipo Charger

Imax B3 Lipo Charger

£19.99

In stock

£19.99

Imax B3 Lipo Charger with mains lead and UK fused wall plug adapter…

Availability: In stock SKU: B3CHARGER Categories: , ,
Add to Wishlist
  • Description
  • Reviews (0)

Description

Imax B3 Lipo Charger with mains lead and UK fused wall plug adapter…

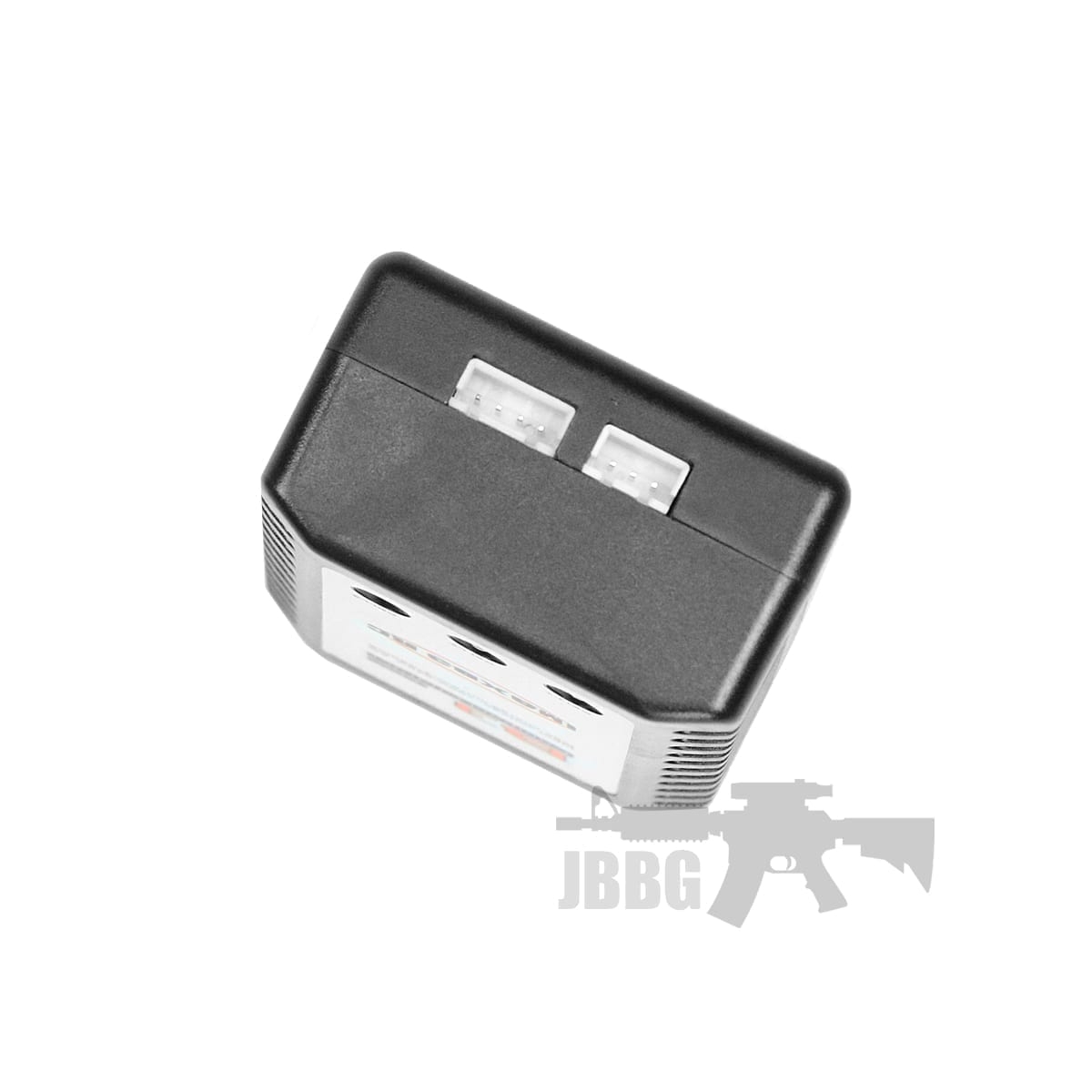

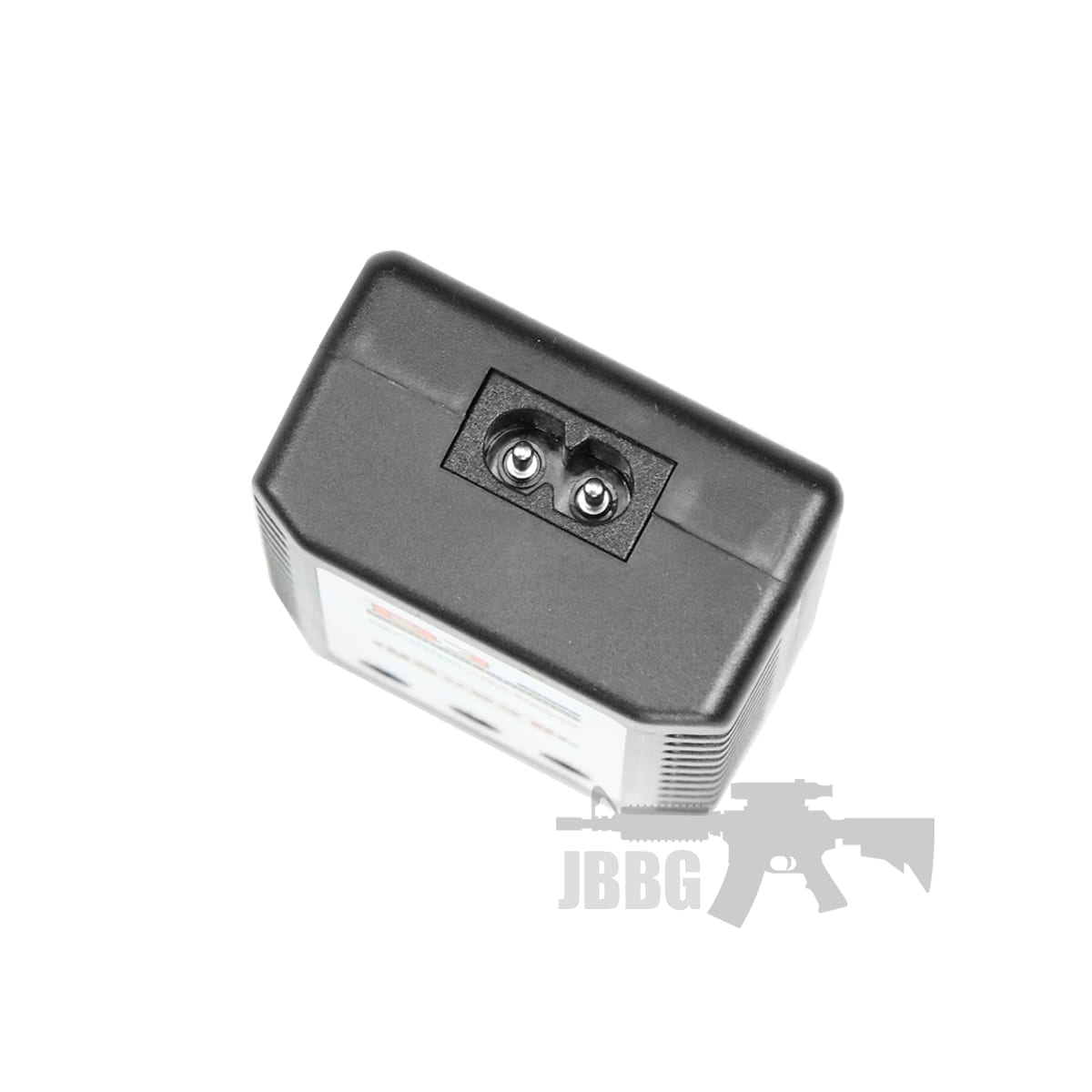

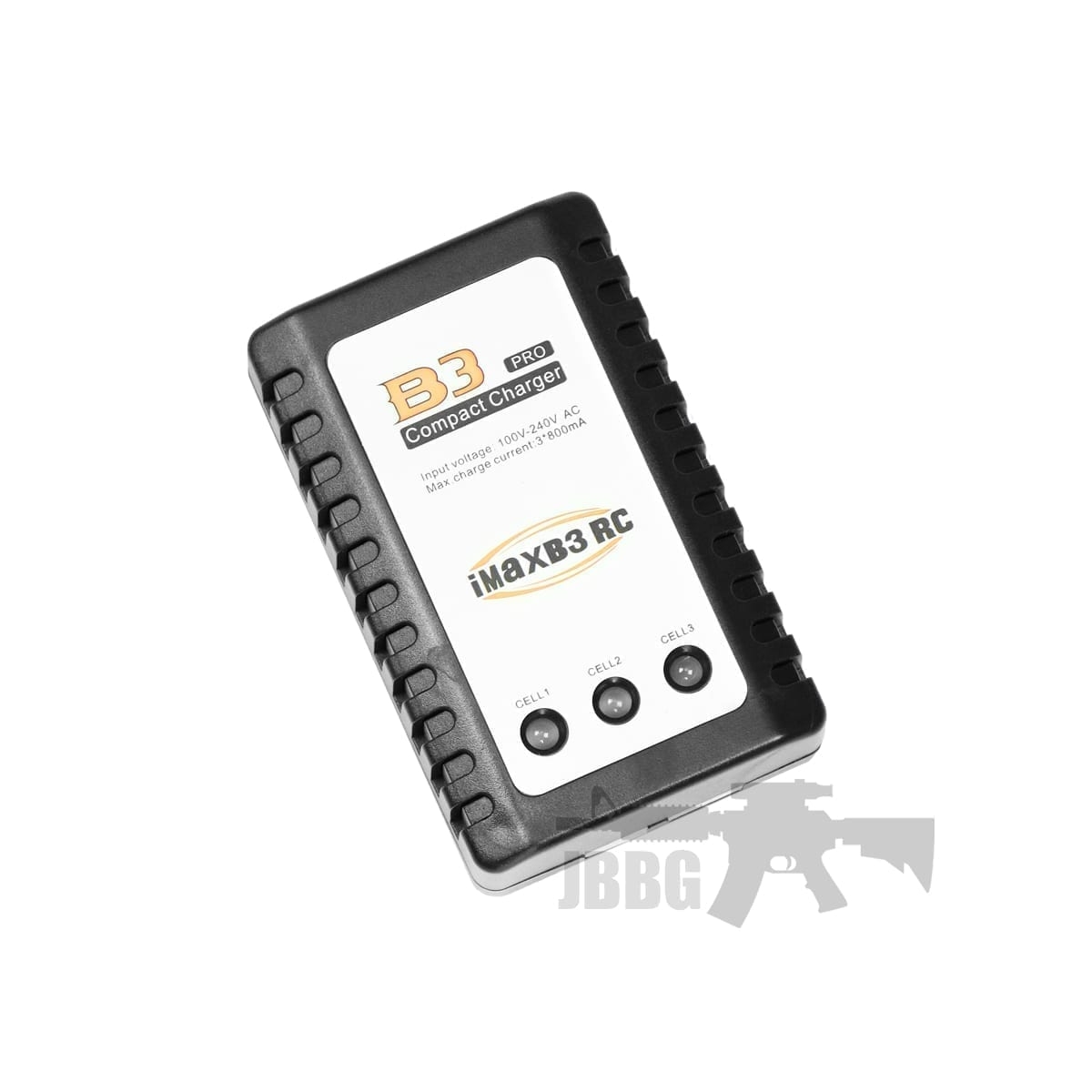

This is the Imax B3 Lipo Chargers, an easy compact balance charger for 2 and 3 cells LiPo battery fast charging with wide AC input. An internal 100-240V AC switch power is built in, and the high precision balance circuit can supply a larger current up to 850mA per cell. Double colour LED can display the process of charging (RED: charging; GREEN: full). This charger is compact and light, especially there is a separated corresponding balance port for each battery pack.

Input voltage: AC 110V-240V
Balance charge current: 850mA
Display: Green & Red LED
Case: Plastic
Dimension: 90mm*55mm*35mm
Weight: 180g

Charger Cells for LI battery Charge current range
B3 Compact 3cells 850mA 25W

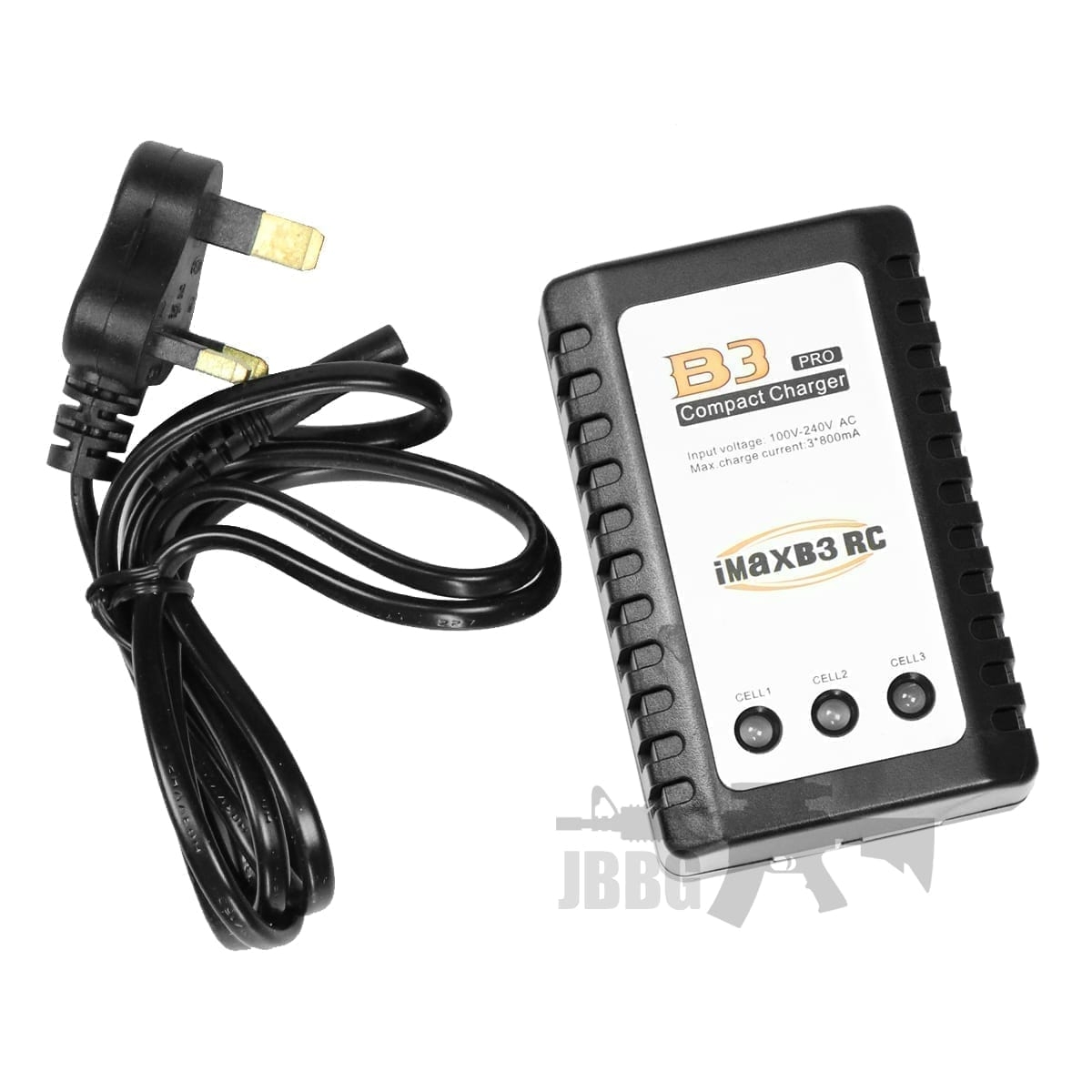

– IMAXRC B3 Compact Charger
– Power Cord (UK 3 pin)
– Instruction manual

Imax B3 Compact OPERATION:

1. Please firstly connect the B3 Pro charger to power, while the three power LEDs will turn from red to green, which indicating that the charger works in good order.

2. Please connect the battery pack to balance port, while the three power LEDs will all turn into red and charging begins. Please note once the charging of one cell is done, the corresponding power LED for it will turn green.

3. When the three power LEDs all turn green, the charging for the battery pack is Finished.

IMPORTANT: This charger is ONLY suitable for LiPo batteries.

Before purchasing a battery or charger please read our important warning and disclaimer here.
