Bulldog B3 Li-Po Battery Charger

BULLDOG B3 LI-PO BATTERY CHARGER

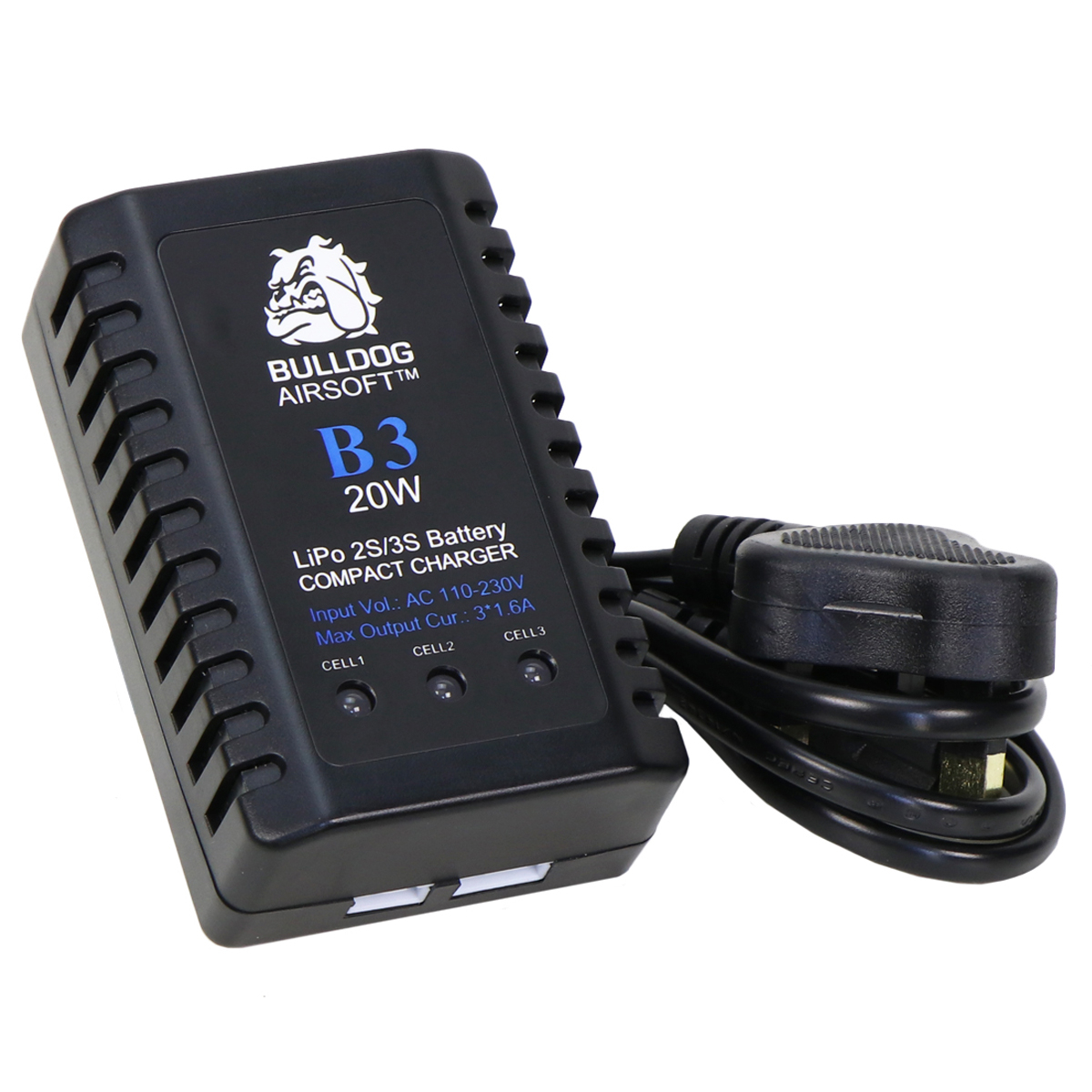

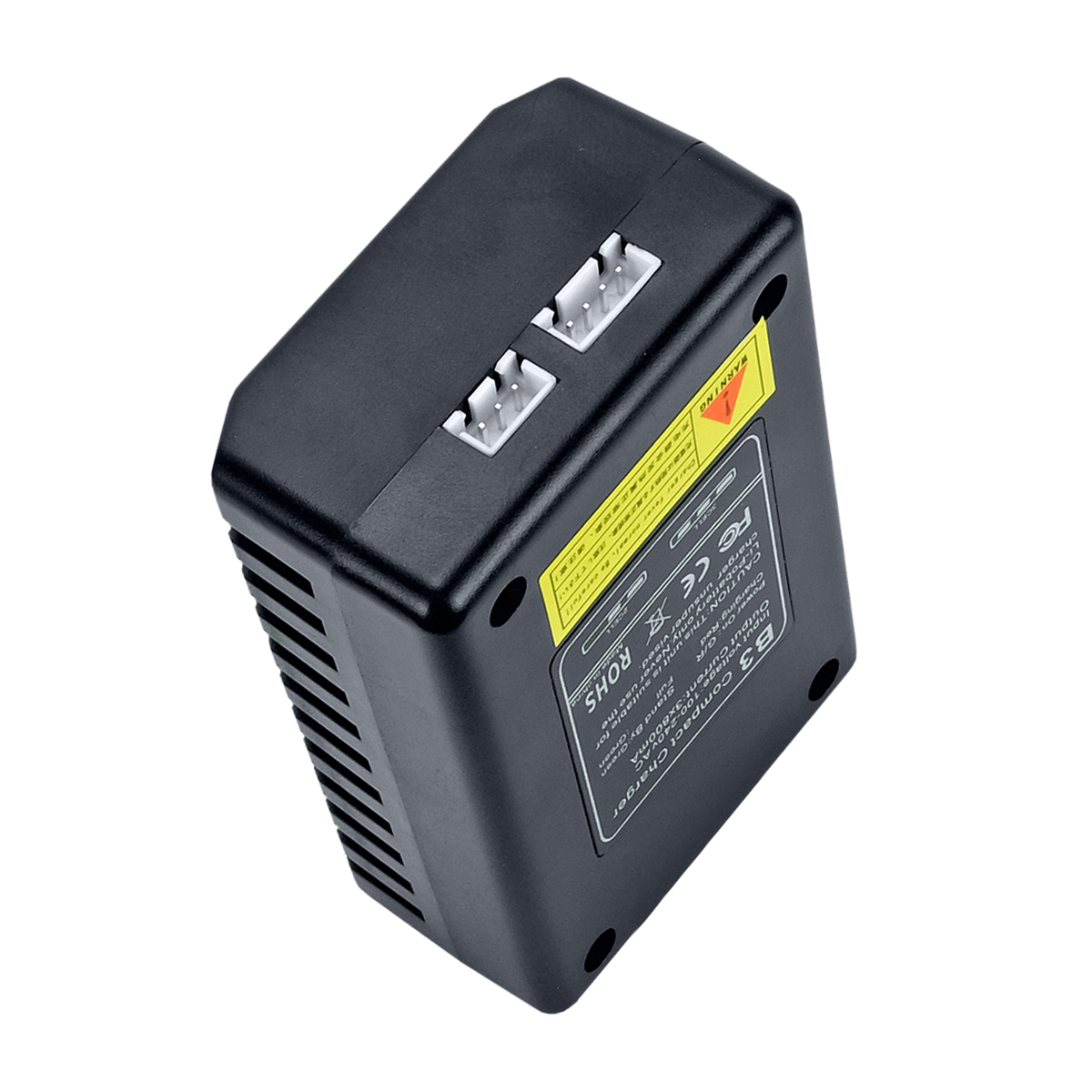

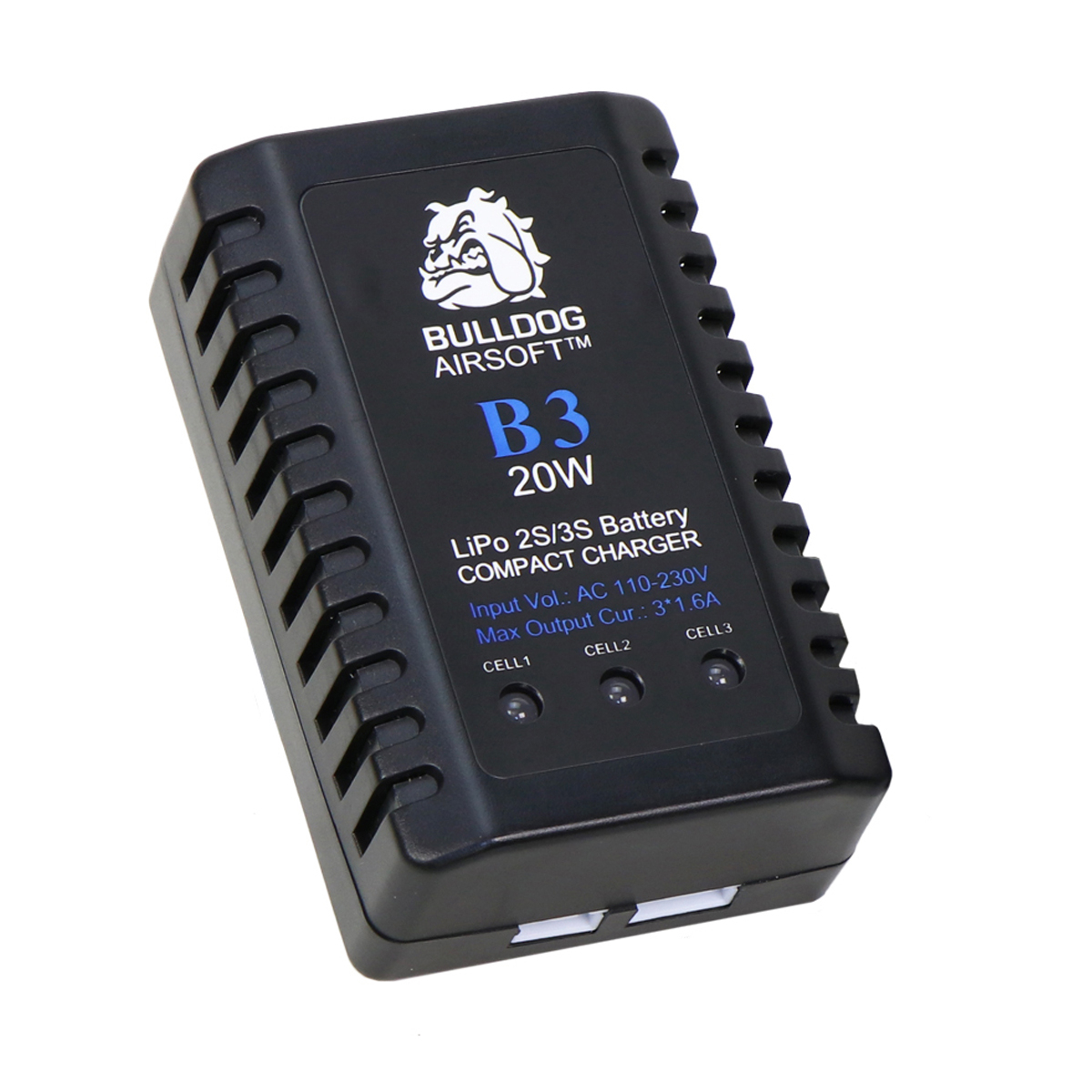

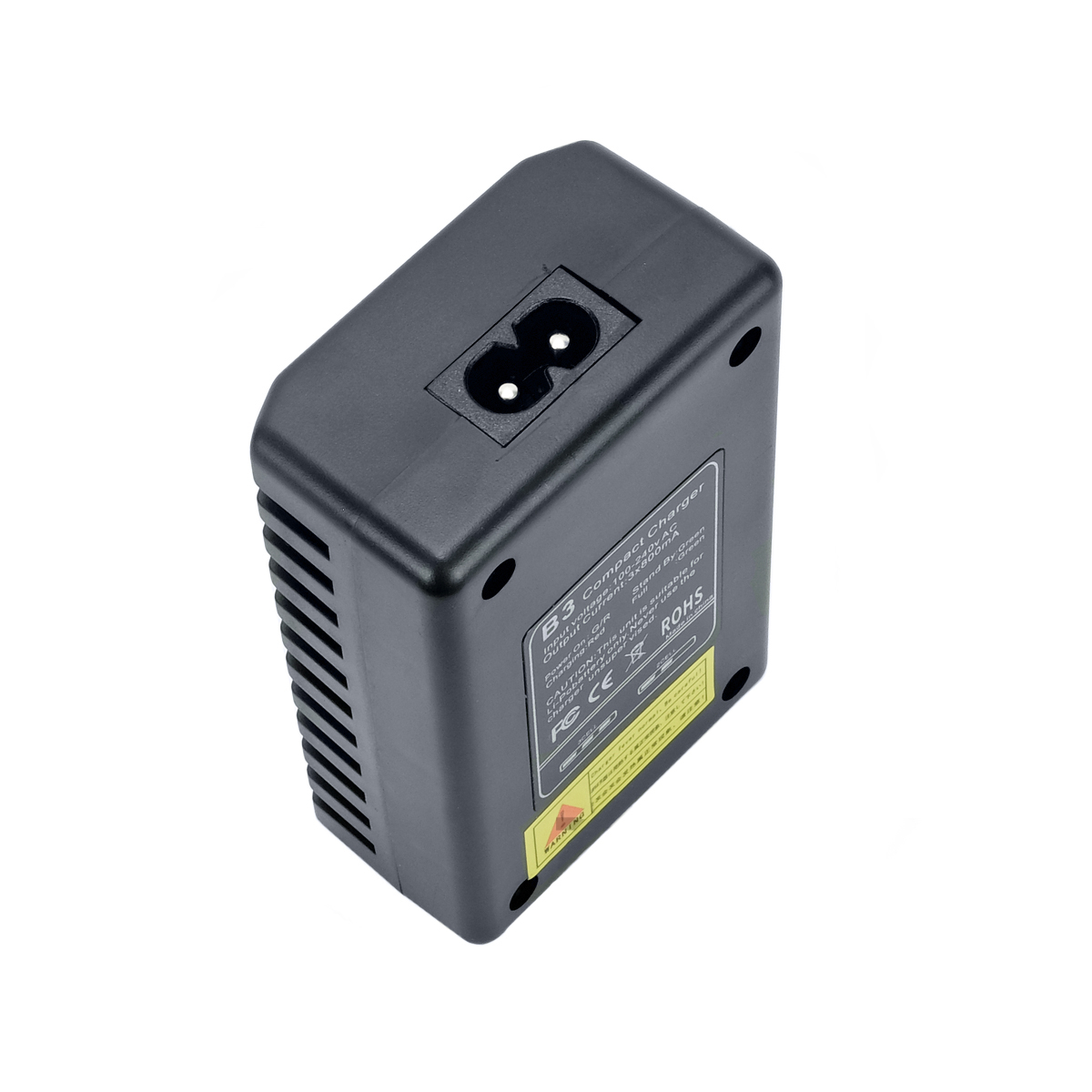

This is the Bulldog Airsoft B3 Li-Po Charger, an easy compact balance charger for 2 and 3 cells Li-Po airsoft battery. It is a fast charger with a wide AC input and an internal 100-240V AC switch power is built-in. The high precision balance circuit can supply a larger current up to 1600mA per cell. Double colour LED to display the process of charging (RED: charging; GREEN: full). This charger also has a separated corresponding balance port for each battery pack.

Input voltage: AC 110V-240V
Balance charge current: 3x 1600mA
Display: Green & Red LED
Case: Plastic
Dimension: 90mm*55mm*35mm
Weight: 180g

Charger Cells for LI battery Charge current range
B3 Compact 3x 1600mA 20W

BULLDOG B3 OPERATION

1. Please firstly connect the B3 Pro charger to power, while the three power LEDs will turn from red to green, which indicating that the charger works in good order.
2. Please connect the battery pack to the balance port, while the three power LEDs will all turn into red and charging begins. Please note once the charging of one cell is done, the corresponding power LED for it will turn green.
3. When the three power LEDs all turn green, the charging for the battery pack is Finished.

IMPORTANT: This charger is ONLY suitable for Li-Po batteries.

Before purchasing a battery or charger please read our disclaimer here.

IN THE BOX

• Bulldog B3 Compact Charger
• Power Cord (UK 3 pin)
• Instruction Manual

WARNING

• Use special caution when working with Lipo battery packs, they are very sensitive to charging characteristics and may explode if mishandled.
• Make sure you have enough knowledge on Lipo rechargeable batteries in charging, discharging and assembly before use.
• Put the batteries in a fire-proof environment when charging.
• We recommend that you only charge when the battery is in a fireproof Lipo bag.
• Never leave batteries unattended when charging.
• Do not put batteries on the car seat, wood surface or carpet when charging.
• We are not responsible for any damage caused by misusing or mishandling, not for any damage caused by other Lipo batteries.
• Do not make any changes to the charger, charger accessories or connectors, as this might cause an electrical shortage, fire or over-heating during charging.

Before purchasing a battery or charger please read our important warning and disclaimer here.
